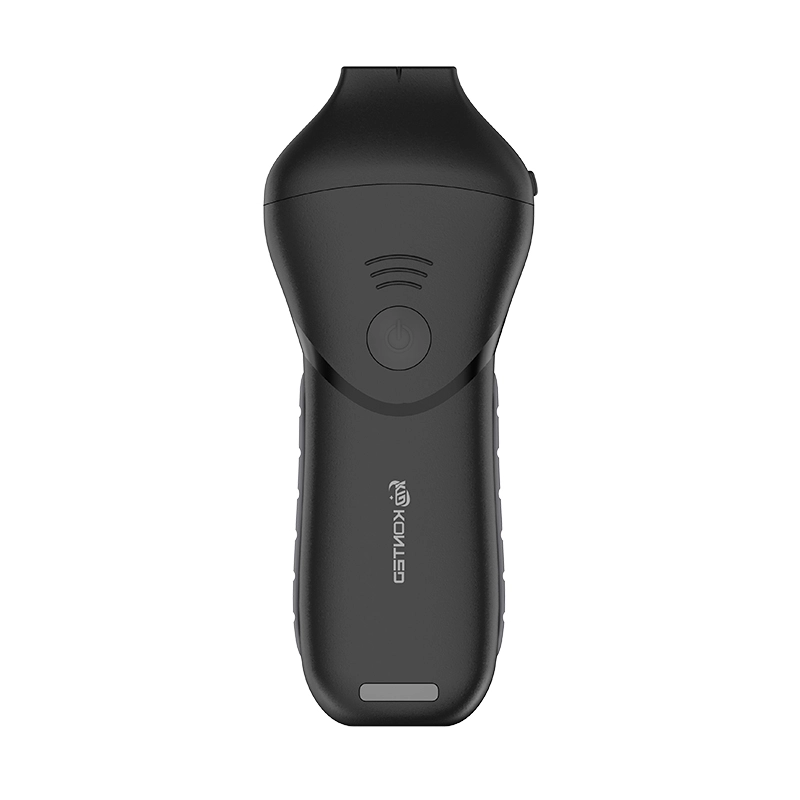

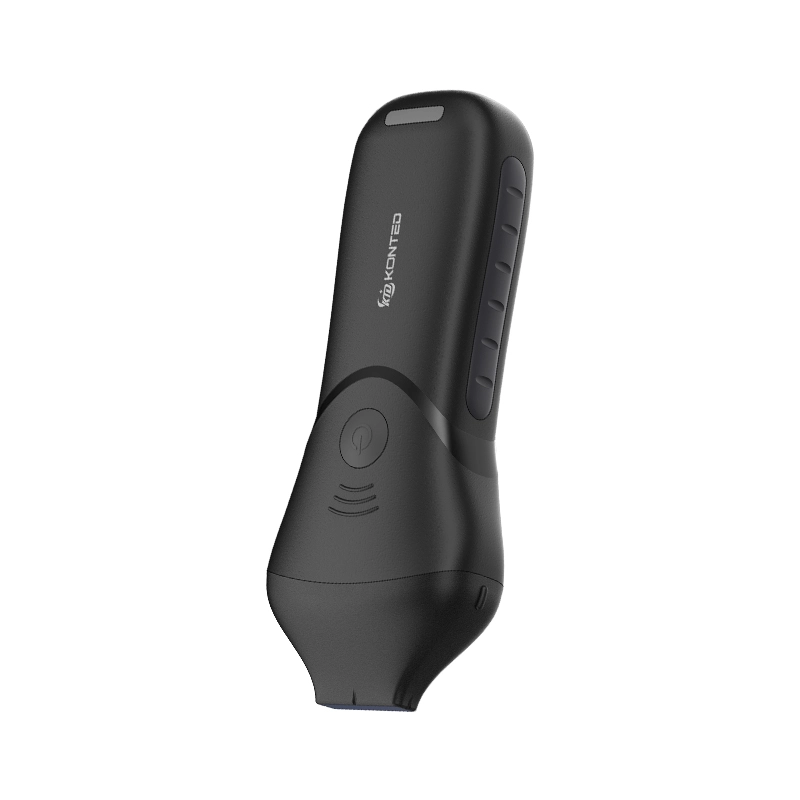

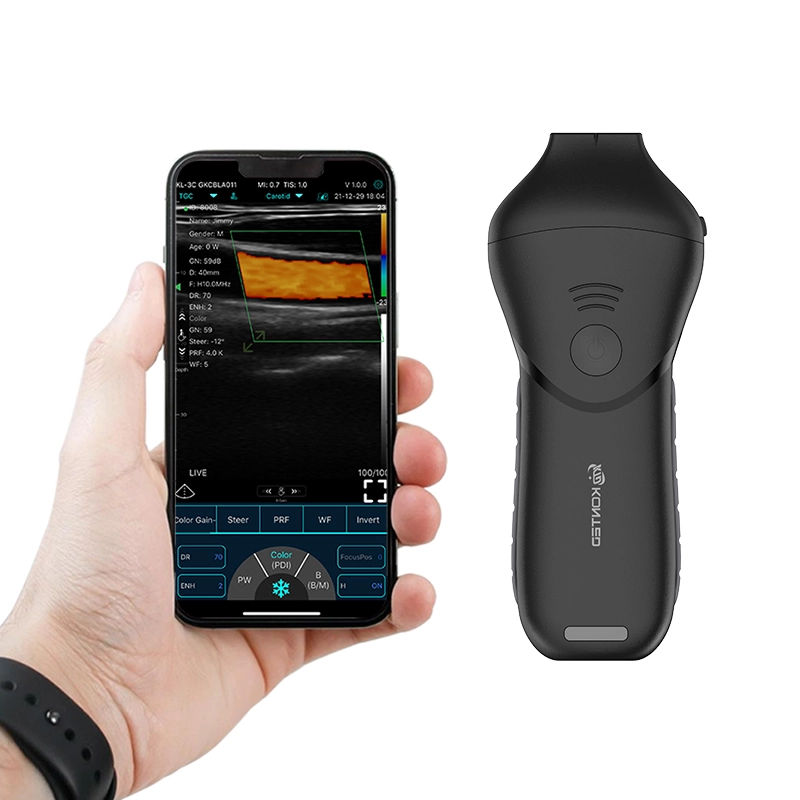

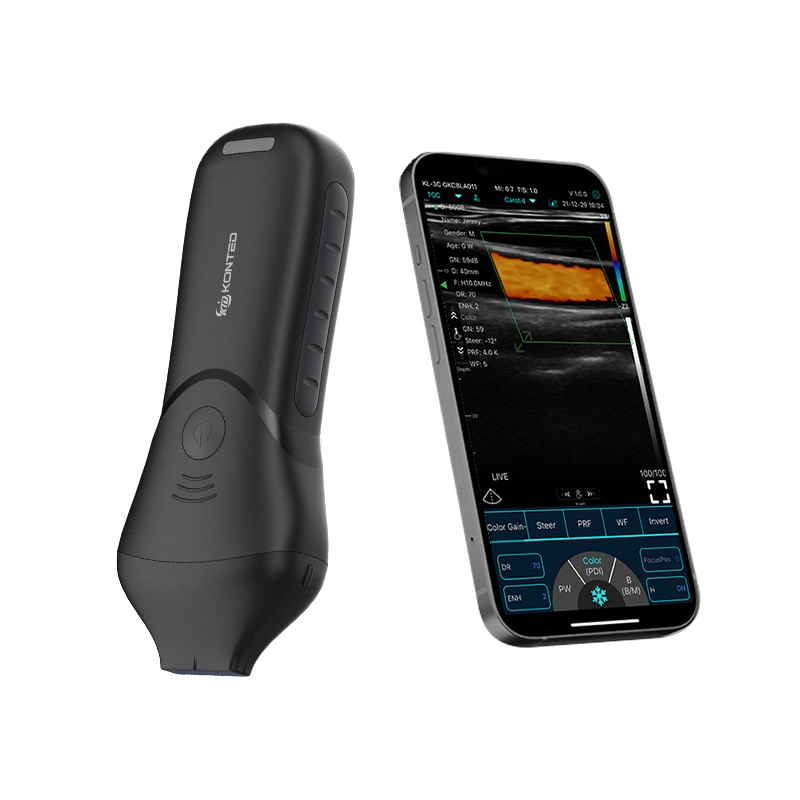

C10MB Pro – Aesthetic & Nerve Precision Ultrasound Probe

Konted C10MB Pro – Aesthetic & Nerve Precision Probe (20MHz High-Frequency)

The Konted C10MB Pro is an ultra-high-frequency handheld ultrasound probe engineered for the most demanding precision procedures. While standard linear probes struggle to visualize structures smaller than 5mm, the C10MB Pro utilizes a specialized 16-20MHz frequency range to provide “Macro-level” clarity of the most delicate anatomical structures.

Designed specifically for Aesthetic Medicine and Neuromuscular Diagnostics, the C10MB Pro features a compact 24mm “Mini-Linear” footprint. This allows clinicians to navigate tight anatomical contours—such as the bridge of the nose, the periorbital area, or the wrist—with a level of maneuverability that standard-sized probes cannot match.

By delivering the same 20MHz / 192-element hardware architecture found in the industry’s most expensive flagship devices, the C10MB Pro offers a high-performance, subscription-free alternative for clinicians prioritizing patient safety and procedural certainty.

Key Features & Clinical Advantages

• AI-Powered Skin Analysis (Included Standard): Experience the future of dermatological diagnostics. Our software includes a built-in AI suite that automatically identifies and measures skin layers in real-time. It accurately differentiates between the Epidermis, Dermis, and Subcutis, providing instant millimetric thickness data—perfect for tracking collagen remodeling or ensuring precise injection depth.

• Ultra-High Frequency (20MHz): Specifically tuned for shallow-depth imaging (10mm–40mm). This is the gold standard for identifying facial arteries as small as 1mm or the internal honeycomb fascicles of peripheral nerves.

• Aesthetic Safety & Mapping: Empowers aesthetic injectors to perform pre-filler vascular mapping, reducing the risk of vascular occlusion. The high resolution allows for the precise identification of previous filler deposits and “real-time” needle guidance for dissolving procedures.

• Precision Nerve Imaging: Provides the extreme axial resolution required for Neurologists and Pain Management specialists to diagnose nerve entrapments or perform high-accuracy nerve blocks with “great certainty.”

• Compact “Mini-Linear” Head: The small 24mm scanning surface is optimized for the face, neck, and small joints, ensuring full skin contact even on curved surfaces where larger probes fail.

• Measure Magnify Tool: The specialized “MY USG” software includes a magnification tool, allowing you to mark the boundaries of tiny target areas with absolute precision.

• Zero Subscription Model: Unlike competing high-frequency scanners that require monthly memberships or paid “AI unlocks,” the C10MB Pro offers a lifetime, license-free workflow with unlimited users and all advanced features included.

Technical Specifications:

• Frequency: 16MHz / 20MHz

• Element Count: 192 Elements (64 Channel)

• AI Function: Automated Skin Layer Thickness Measurement (Included)

• Footprint: 24mm x 6mm

• Scan Depth: 10mm to 40mm

• Connection: High-speed WiFi & USB-C

• Waterproof Rating: IP68 (Fully immersible for high-level disinfection)

• Compatibility: iOS, Android, and Windows
